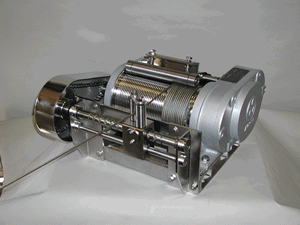

BMW-201-SU-DGS-TR-IV
| Model | BMW-201-SU-DGS-TR-IV |
| Frequency | 6Hz/60Hz |
| Max capacity (1st layer) |
2450N (250kgf) /2450N (250kgf) |
| Line speed (1st layer) |
0.23 m/min /3.06 m/min |
| Model | BMW-201-SU-DGS-TR-IV |
| Frequency | 6Hz/60Hz |
| Max capacity (1st layer) |
2450N (250kgf) /2450N (250kgf) |
| Line speed (1st layer) |
0.23 m/min /3.06 m/min |
| Drum capacity | φ5x (20.0+1.56)m |
| Wire rope diameter | φ5mm (6X24) (Japan Industrial Standards) |
| Gear ratio | 1/296.3 |
| Motor type | Totally Enclosed Fan Cooled Motor |
| Output power | 0.2 kW |
| Number of poles | 4 P |
| Brake | Spring Actuated Type Brakes |
| Duty factor | Continuous |
| Weight | 75.0 kg |
