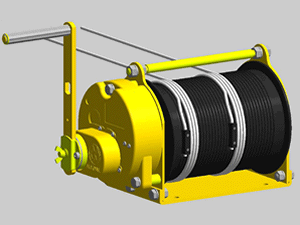

GM-3-NSIL-DWG3
| Model | GM-3-NSIL-DWG3 |
| Type | Manual winch |
| Max capacity | 2940N (300kgf) |
| Drum capacity (5th layer) |
φ9x50.0m |
| Wire rope diameter | φ6mm (6X24) (Japan Industrial Standards) |
| Model | GM-3-NSIL-DWG3 |
| Type | Manual winch |
| Max capacity | 2940N (300kgf) |
| Drum capacity (5th layer) |
φ9x50.0m |
| Wire rope diameter | φ6mm (6X24) (Japan Industrial Standards) |
| Gear ratio | 1/8.9 |
| Handle force | 160N (16.3kgf) |
| Brake | Automatic brake |
| Coating | Baked enamel paint (N-2) |
| Own weight | 40.0 kg |
